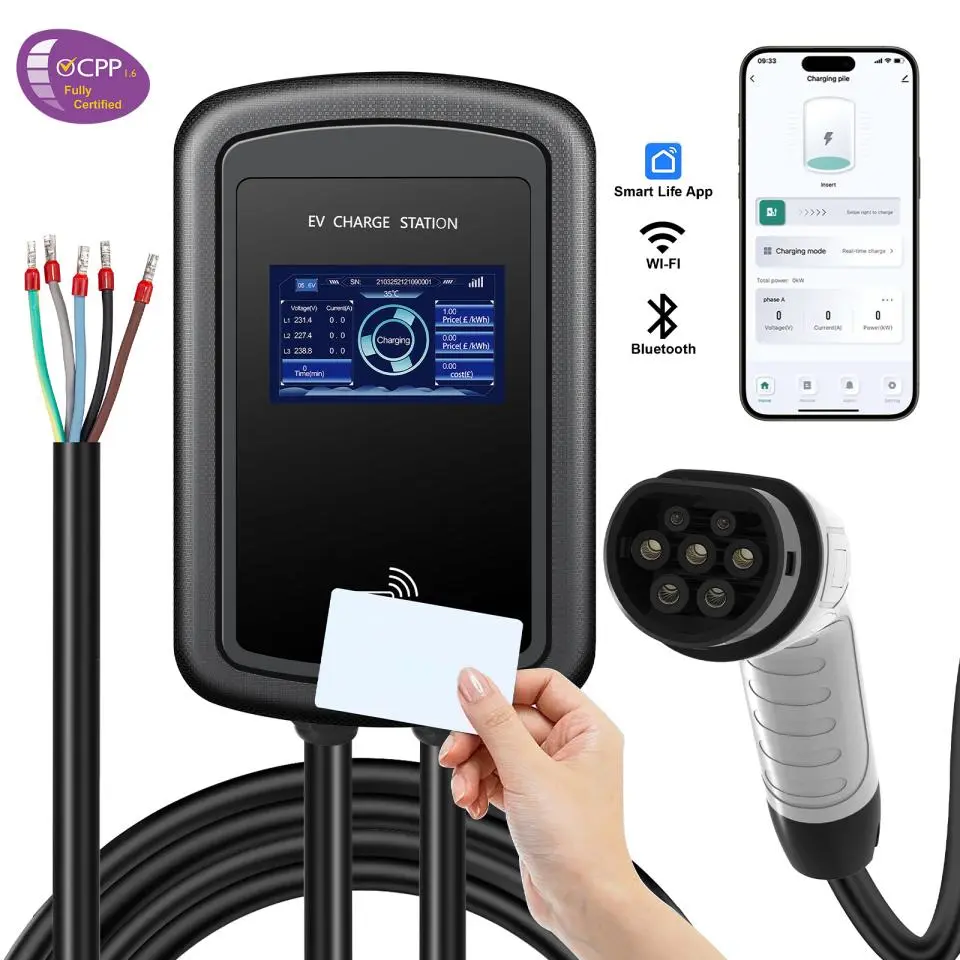

Commercial OCPP Smart Wallbox EV Charging station

OCPP Wallbox EV charging station 22kW with 5 meters long charging cable is an intelligent and powerful EV Charger with Commercial Charging Control for remote control with OCPP Protocol. This Smart OCPP Wallbox enables to monitor and report power consumption. User can select energy tariff and let the system automatically work out the cheapest time to charge EV. Equipped with Ethernet for better communication.
※ Charging Speed – 22 kW (up to 140km of driving per hour of charge)
※ Smart Phone App via “Smart life”
※ OCPP 1.6J integration

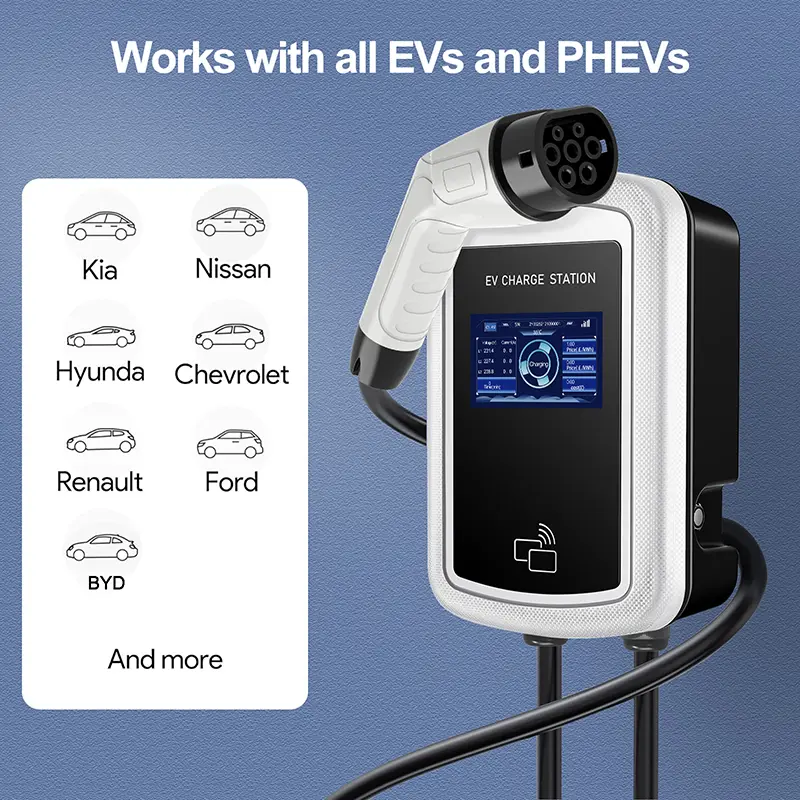

※ Compatible with all-electric vehicles and models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Toyota, Volkswagen, Volvo

product details

PRODUCT

• OCPP full functions - like Smart charging, reservation which allows user to avoid peaks and save on charging costs. Customers can reserve a charging time to charge the car when the electricity price is the cheapest. Current adjust function also convenient your charging wherever.

• Money saving - Select your energy tariff and let the APP automatically work out the cheapest time to charge your EV.

• Remote start and stop - When you are outside of the house and forget to charge your car, use your phone app can start or stop charging.

• Fast charging speed - charging power: 22kW can seed up the charging process.

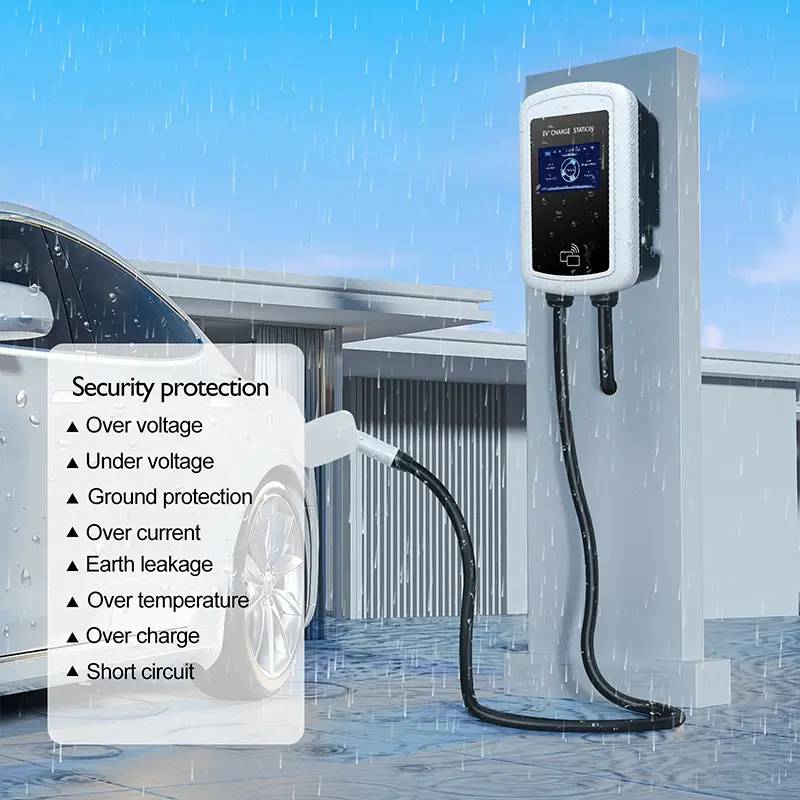

• Safety - it has a certified MID counter ensuring measurement accuracy and an RCD fuse.

Product Parameters

Parameters

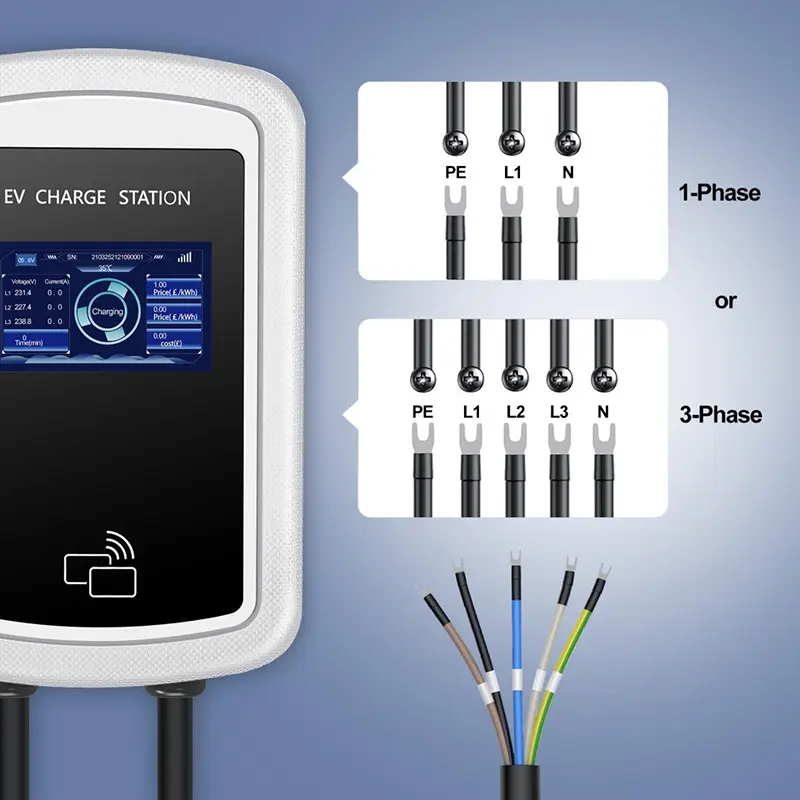

Input cable	0.3 meters
Output cable	5 meters
Connector Type	IEC 62196 Type 2
Special Features	Fast charging, Adjustable amperage, IP66 waterproof, Dynamic indicator lights, Visual LCD screen
AC Power Output Rating	Maximum 22KW (400V AC * 32A)
Connectivity	Bluetooth, Wi-Fi , OCPP 1.6J
Charging Modes	Direct Charge, RFID Charging, APP Control
Operating Temperature Range	-30℃~50℃(-22℉~122℉)
PCB protect temperature	+80℃
Material of charging cable	TPU
Product features	Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance.
