Waterproof App Control Single Phase 7KW GB/T Wall-mounted EV Charging Station
Features
1. Charging power: 7KW
2. Rated Current: AC 32A
3. Insulation Resistance：＞1000MΩ
4. Withstand Voltage：2000V
5. Contact Resistance：0.5mΩ Max
Parameters
| Charger Type | GB/T |
| Input/Output voltage | AC 220V/Single Phase |
| Input/Output Current | 8/10/13/16/20/24/32A |
| Max Output Power |
7KW |
| Frequency |
50/60HZ |
| Input Cable |
0.6M |
| Output Cable |
5M |
| Withstand Voltage |
2000V |
| Operating Temperature |
-30℃ -- +50℃ |
| PCB Protect Temp. |
+80℃ |
| Work Altitude |
<2000M |

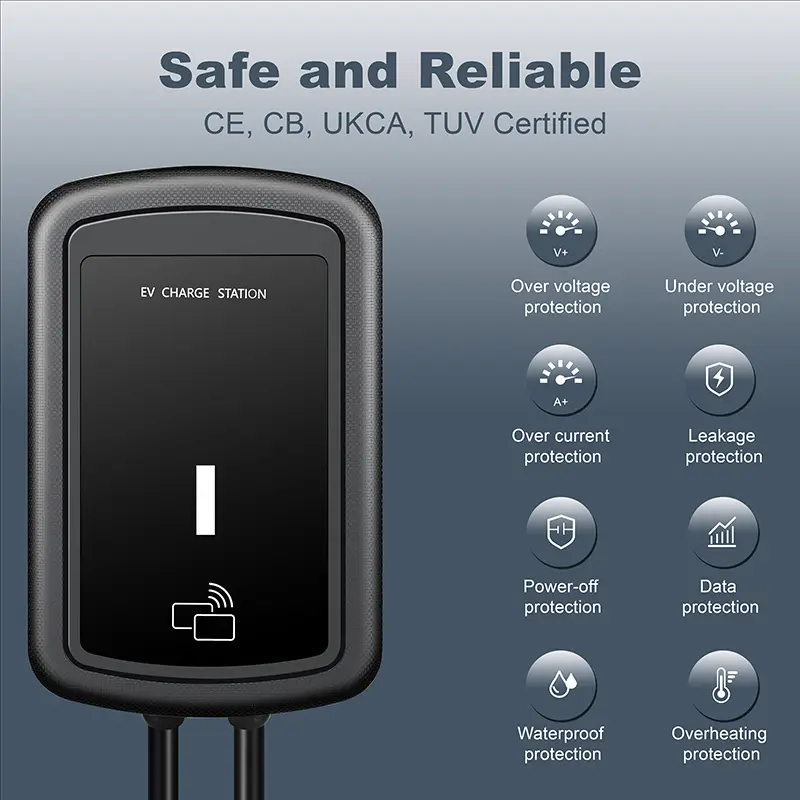

| Protection |
over voltage protection, over current protection,over-temp protection,under voltage protection,leakage protection,lightning protection,short circuit protection |
| Controller IP Level |
IP55 |
| Current Adjustingment |
Yes |
| APP Control |
Yes |

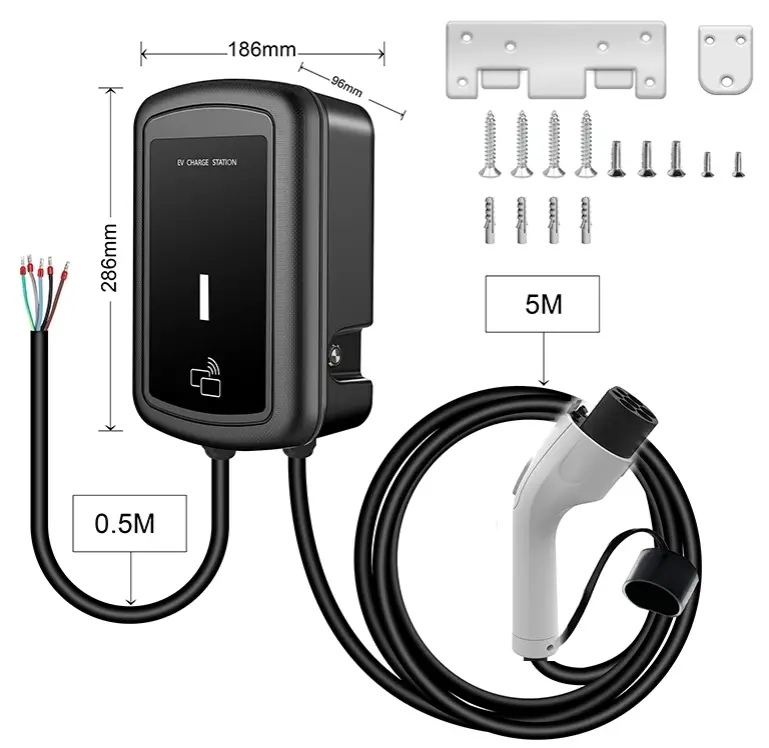

| Controller Size |
286*186*96mm |
| Timing/Appointment |
Yes |
| Certification |
CE,UKCA,CB,TUV,ROHS |
Product Advantages
Q&A
Q1:Are you a factory or trading company?
A1: We are a professional manufacturer of new and sustainable energy applications
Q2:What is the warranty?
A2:12 months. In this period, we will supply technical support and replace the new parts by free(limited to issues arising from the product itself), and customers are in charge of delivery.
Q3:What is your terms of packing?
A3:Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4：What is your terms of payment?
A4: For order amount less than USD 5000.00, 100% payment in advance; For order amount between USD 5000.00 to USD 10,000.00, 30% deposit and balance before shipment.
Q5：What is your terms of trade?
A5:EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6：How about your delivery time?
A6: Generally, it will take 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7:What is your sample policy?
A7:We can supply the sample if We have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8:Do you test all your goods before delivery?
A8:Yes, we have 100% test before delivery.
